Performance characteristics:

1. The shell is made of glass fiber reinforced plastic

2. The transmission system adopts heavy-duty pulleys and bearings

 3. The motor does not need to be maintained

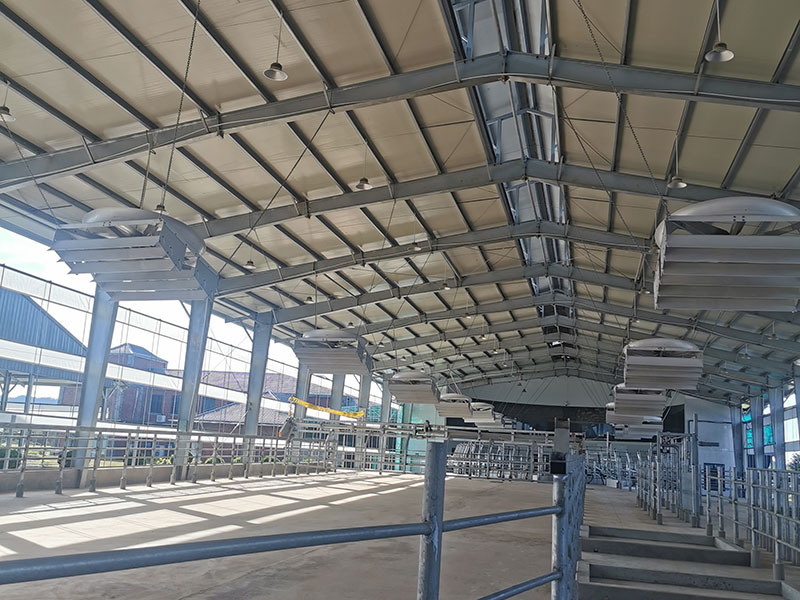

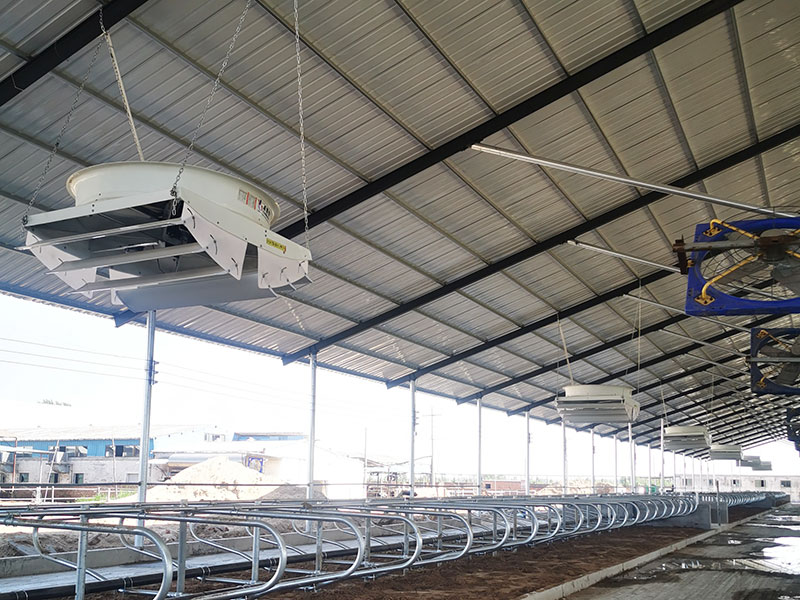

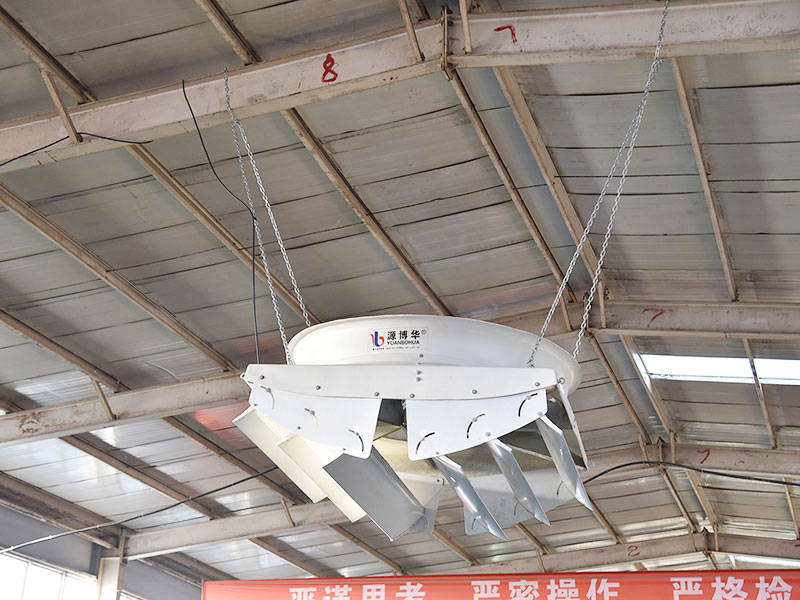

4. It can be installed on steel columns, structural columns, or suspended on the ceiling (optional)

5. Optional variable frequency drive

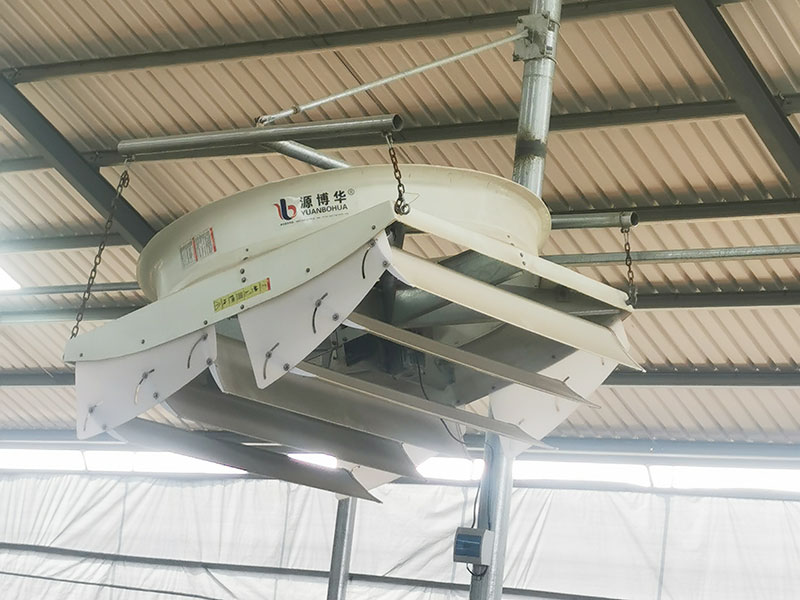

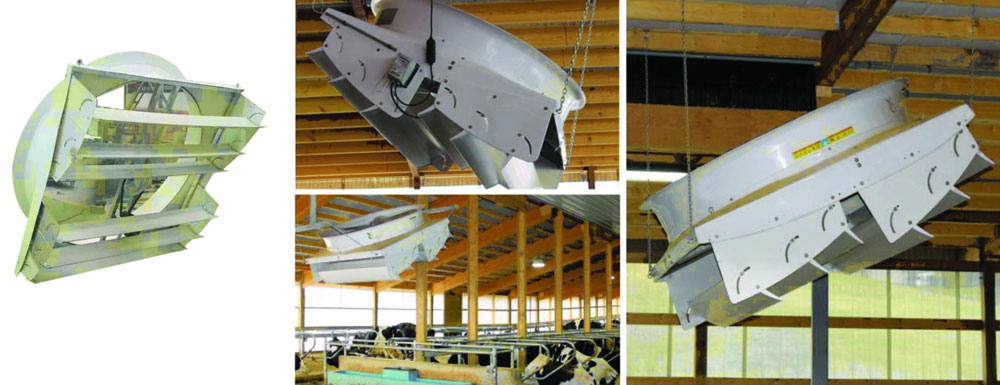

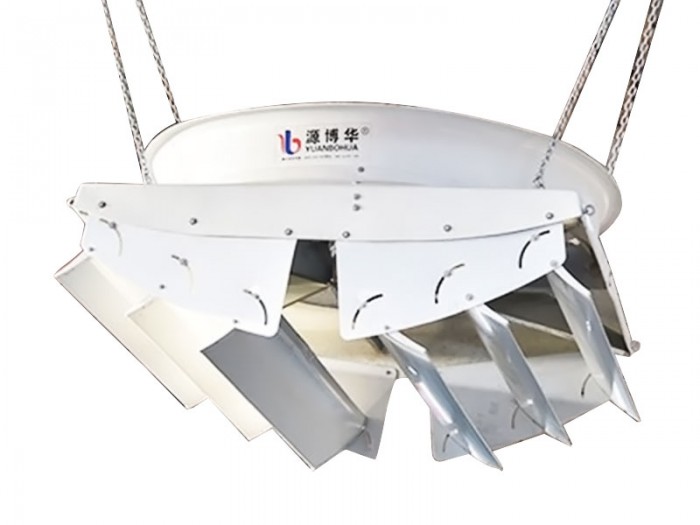

6. The 72-inch Saikron fan adopts 6 deflectors for directional airflow

7. 6 heavy-duty aluminum fan blades 8. Reduce cooling energy consumption by 50%

Main technical parameters:

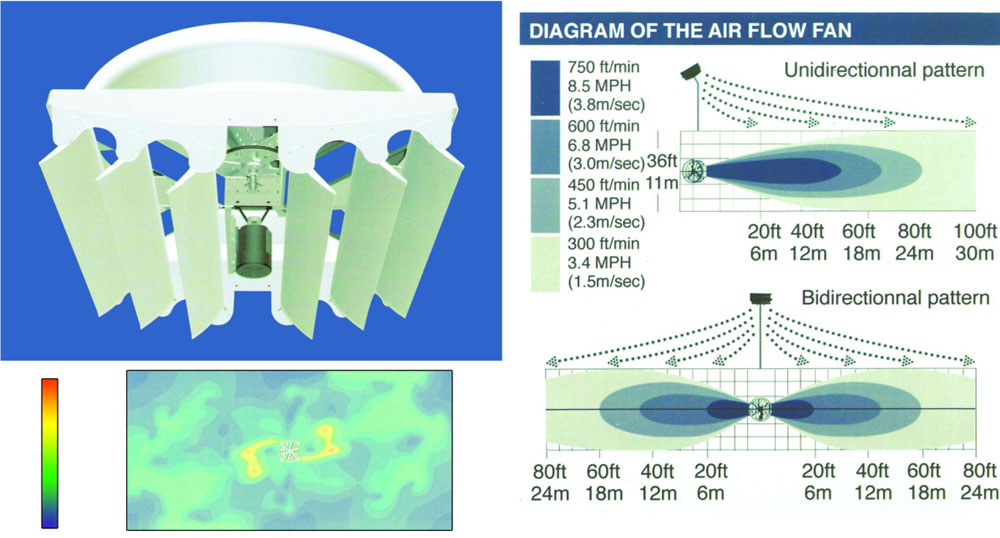

Working voltage: 380V Fan power: 2.2KW Fan blade diameter: 72'' (1.83m) Speed: 50 revolutions per minute ~ 30O revolutions per minute Adjustable one-way ventilation coverage area of about 360 square meters (effective length of about 30 meters, effective width of about 12 meters)

Wind speed up to 1200 (FPM) and more than 6 m/s (in the state of one-way installation of the deflector, the wind speed at 45 meters away from the fan can still reach 300 (FPM),>1.5 m/s)Air volume≥ 93,000 cubic meters / hour, machine weight: 170 kg, host dimensions: 2 m X 2 m X 1.1 m
